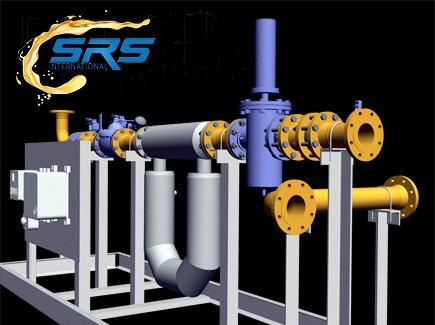

Blending Skids

The blending skid is custom designed to provide the transfer of blended fuel in ratios that range from 1% – 99% while fully compliant with all standard local and federal codes for fuel handling. The blending skid is a self-contained, mounted, safe and efficient solution for fuel blending of multiple products as well. The blended fuel is created through a predetermined recipe entered into the digitally controlled PLC (Programmable Logic Controller). The blending skid can also be designed to inject additives simultaneously during the fuel blending. Your system will meet the requirements for your blended fuel truck loading via bottom or top access fill point.

Each unit of equipment is developed and made under specifically taken client, according to technical requirements of the customer; the equipment is integrated into existing productions, and also projected from the very beginning and on a turn-key basis.

All equipment will be mounted within the structural frame of the blending system including preinstalled piping, terminated tie-ins, flanged connections, and main control panel with all electrical wiring. All instruments will be calibrated and installed. Upon shipping of the system some sensitive items may be removed and individually packed to ensure proper handling. SRS systems usually ship as a single piece excluding the control system when customer requests remote location mounting at customer site. It is the responsibility of the customer to provide all unloading & installation of the provided equipment upon arrival at customer site. SRS will provide detailed instructions with recommended procedures.

Standard Blending Skid Design Specifications

Flow Rate up to 400 GPM unless customer specifies the requirement for higher flow.
Maximum Temperature of 350 F
Maximum Pressure at 150 PSIG
Outside Rated
Explosion Proof Rated to both European and North America Electrical and fire requirements.
Completely Self-sufficient Skid with clustered connections at end
Fork Lift moveable as all items are on the skid
Requires FEED pump of both Biodiesel and Diesel to be supplied by customer unless customer specifies other. Blending skid will control flow accurately

Downloadable Brochure

Fuel Skids with Modular Metering System – Bottom or Top Truck Loading

A Metering Skid is the solution for full custody transfer of your fuel to your customer. This system is designed to deliver the fuel at your determined flow rate and is compliant with all standard Local and Federal Codes for fuel handling. Your Metering Skid can accomplish the fuel loading in a safe efficient manner to the truck via top or bottom access fill point and can be designed and made to operate manually or fully automated.

We are also able to integrate loading arm supports into the platform supports which eliminated the need for separate supports and foundations for the loading arms. Overall, because of our innovative design features and modular construction, our projects come in well under budget and on time.

Fuel Skids with Modular Blending System – Bottom or Top Truck Loading

Your Fuel Blending Skid is custom designed to provide custody transfer of blended fuel in ratios that range from 1% – 99% while fully compliant with all standard Local and Federal Codes for fuel handling. The Blending Skid is a self-contained mounted safe efficient solution for fuel blending of multiple products as well. The blended fuel is derived through a predetermined recipe entered into a digitally controlled PLC or Programmable Logic Controller. An example of a fuel delivered by the Blending Skid: A.) Plus (89 octane) gasoline with 10% ethanol. This is accomplished by blending 87 with 93 while ratio blending ethanol at 10%. The Blending Skid can also be designed to inject additives at the same time of the fuel blending. Your system will meet the requirements for your blended fuel truck loading via bottom or top access fill point.
